Deb’s Feasibility Rule Ranking Distribution (distr_Deb)

import math

from pyxla import distr_Deb
from pyxla.util import load_data
from pyxla.sampling import HilbertCurveSampler

sphere_sample = {
    "name": "Sphere",
    "X": HilbertCurveSampler(sample_size=100, dim=1, l_bound=-5, u_bound=5, seed=42),
    "F": lambda x: x**2,
    "V": [lambda x: x**2 - 2, lambda x: 8 * math.sin(20 * x)]
}

deceptive_sample = {
    "name": "Deceptive",
    "X": HilbertCurveSampler(sample_size=100, dim=1, l_bound=0, u_bound=6),
    "F": lambda x: (0.4 * x - 2) ** 2 if x > 0.625 else (10 * x - 4) ** 2 - 2,
    "V": lambda x: ((0.4 * x - 2) ** 2 if x > 0.625 else (10 * x - 4) ** 2 - 2) - 1
}

load_data(sphere_sample)
load_data(deceptive_sample)

WARNING:root:The Hilbert curve with dimension 1 is just a number line. You are sampling around points on a number line.
WARNING:root:The Hilbert curve with dimension 1 is just a number line. You are sampling around points on a number line.

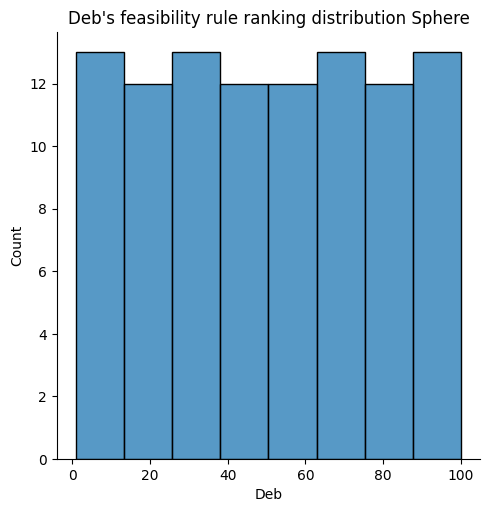

distr_Deb(sphere_sample)

({'Deb_min': 1,
  'Deb_max': 100,
  'Deb_mean': 50.5,
  'Deb_med': 50.5,
  'Deb_q1': 25.25,
  'Deb_q3': 75.75,
  'Deb_sd': 29.011491975882016,
  'Deb_skew': 0.0,
  'Deb_kurt': -1.2002400240024003},
 <seaborn.axisgrid.FacetGrid at 0x7f8c02a41f40>)

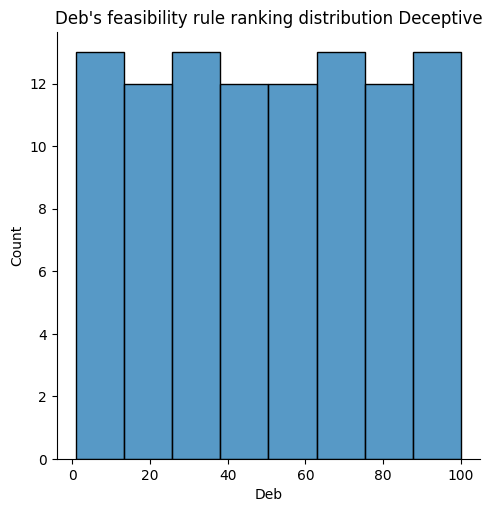

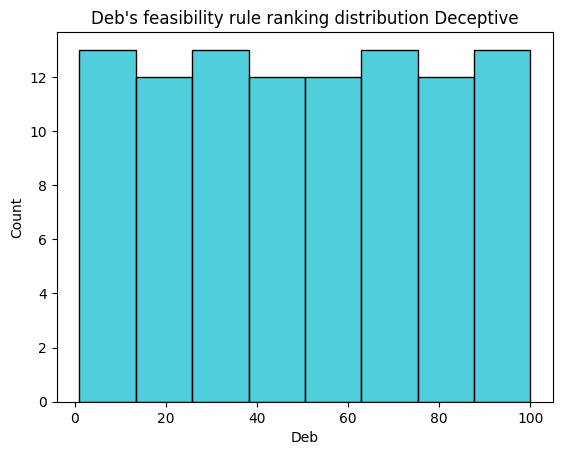

distr_Deb(deceptive_sample)

({'Deb_min': 1,
  'Deb_max': 100,
  'Deb_mean': 50.5,
  'Deb_med': 50.5,
  'Deb_q1': 25.25,
  'Deb_q3': 75.75,
  'Deb_sd': 29.011491975882016,
  'Deb_skew': 0.0,
  'Deb_kurt': -1.2002400240024003},
 <seaborn.axisgrid.FacetGrid at 0x7f8c02a42000>)
